What the Process Does

Swiss-type turning is a precision machining method for small-diameter, long, and slender parts. Instead of leaving a long unsupported section of bar stock in front of the cutting tool, the material is guided close to the machining zone. This support helps limit deflection and makes the method especially useful for fine shafts, pins, connectors, and detailed screw-machine parts.

Process Flow

The machining sequence should be planned around the part's functional datums, feature access, material behavior, and the required inspection method. The detailed route is ultimately governed by the actual machine configuration, workholding, tool availability, and production quantity.

Design Intent

A successful Swiss-type design identifies the guide-bushing area, critical diameter and straightness requirements, thread specifications, cross-hole locations, part-off geometry, and any delicate features that need special support or deburring.



Part Geometry and Materials

Features and Typical Components

Swiss-style machines are well suited to small diameters, long length-to-diameter ratios, tight straightness or concentricity needs, fine grooves, miniature threads, cross holes, and small milled features.

Typical components  Typical applications include pins, miniature shafts, medical-device subcomponents, electrical contacts, precision connectors, optical hardware, small fittings, sensor parts, and high-volume custom screw-machine parts.

Material Selection

Common materials include stainless steel, brass, aluminum, steel, titanium, copper alloys, and engineering plastics. The final material selection should consider part stiffness, application environment, finish, and the potential for burr control on small features.





Technical Planning and Quality

Manufacturing Considerations

A successful Swiss-type design identifies the guide-bushing area, critical diameter and straightness requirements, thread specifications, cross-hole locations, part-off geometry, and any delicate features that need special support or deburring.

Quality and Inspection

Inspection priorities commonly include diameter, straightness, concentricity, small-feature position, thread quality, burr condition, surface finish, and part length. Measurement plans should be practical for the small scale of the features.

Surface Finish and Part Protection

Available finishing approaches may include passivation, polishing, plating, black oxide, bead blasting, electropolishing, and laser marking, depending on material and functional requirements.

Before Production

A manufacturability review should confirm that the tolerance scheme is functional, the specified material is available, the workholding leaves access to critical faces, and the measurement plan can verify all requirements without ambiguity. Where an assembly interface is critical, provide the mating-part information or fit requirement.



Advantages and Applications

Why Select This Process

The guide-bushing arrangement provides useful support for long, slender work. Live tooling can reduce secondary operations by completing turning and selected milling features in one controlled manufacturing route.

Application Context

Medical equipment, aerospace hardware, electronics, instrumentation, optics, automotive components, and miniature industrial assemblies are common Swiss-turning application areas.

When to Choose Another Process

Choose Swiss-type turning when a part is small, long, detailed, and sensitive to deflection. A conventional turning center may be more suitable for larger components or parts without demanding slenderness requirements.



Key Process Parameters

The values below describe the typical envelope of our Swiss-type (sliding-headstock) turning cells. They are the starting point for any review; tight-tolerance features and slender geometry are assessed against the actual bar stock and machine configuration.

Materials We Machine

Swiss-type turning works on a wide range of bar stock. Material selection drives the choice of guide bushing, tool geometry, coolant, and chip-control strategy.

• Stainless steel — 303 (free-machining), 304, 316, 316L, 17-4 PH, 416, 2205 duplex, 17-7 PH
• Carbon & alloy steel — 1018, 1045, 12L14, 4140, 4140 pre-hardened, 8620
• Aluminum — 6061, 2011 (free-machining), 2024, 7075, 6020
• Brass & copper — C360 free-machining brass, C110 copper, C260 cartridge brass
• Titanium — Grade 2, Grade 5 (Ti-6Al-4V), Grade 5 ELI
• Nickel & cobalt alloys — Inconel 625, Inconel 718, MP35N, L605 on review
• Engineering plastics — Delrin, PEEK, PTFE, HDPE, polycarbonate, Ultem
• Pre-form / near-net stock — headed blanks, flattened hex, custom preforms

Standard Tolerances & Achievable Precision

Swiss-type turning is the most precise turning process we run. The guide bushing holds the bar close to the cutting zone, which limits deflection and supports tight diameter and straightness tolerance.

• Standard diameter tolerance — ±0.025 mm (±0.001 in)
• Precision diameter tolerance — ±0.01 mm (±0.0004 in) on selected features
• Length tolerance — ±0.05 mm standard; ±0.025 mm with a sub-spindle stop
• Concentricity / coaxiality — 0.01 – 0.02 mm TIR on features cut from the same setup
• Thread tolerance — 6H / 6g (metric) standard; 2A / 2B (UN) on request
• Surface finish — Ra 0.4 – 1.6 µm typical; Ra 0.2 µm on polishing passes
• Default tolerance scheme — ISO 2768-f (fine) for Swiss unless drawing specifies otherwise

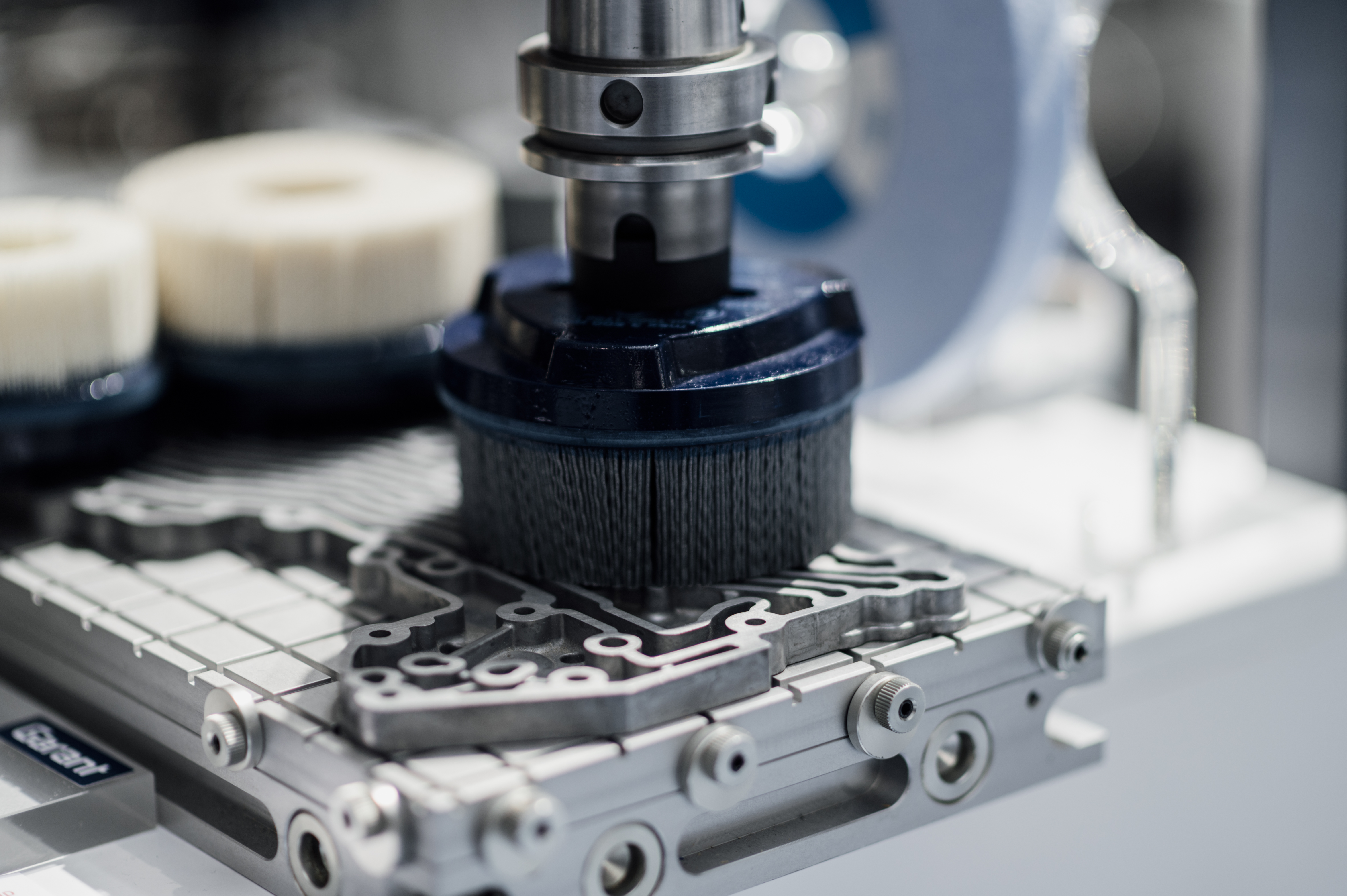

Surface Finish Options

• As-turned — Ra 0.4 – 1.6 µm, controlled by feed, speed, and nose radius
• Polishing & buffing — for mirror, food-grade, or medical cosmetic finishes
• Electropolishing — stainless steel, microinch finish and improved corrosion resistance
• Passivation — ASTM A967 / AMS 2700 for stainless steel, medical-grade included
• Black oxide — MIL-DTL-13924, mild corrosion protection on steel
• Electroplating — zinc, nickel, tin, gold, silver, electroless nickel
• Anodize Type II / Type III — aluminum parts, clear or colored
• Bead blast / tumble — uniform matte finish, deburrs small features
• Phosphate coating — manganese or zinc phosphate for wear resistance
• Laser marking & engraving — part numbers, logos, UID codes, 2D Data Matrix on cylindrical surface

Quality Control & Inspection

Swiss-type parts are typically small and high-volume, so inspection combines high-throughput in-process gauging with detailed CMM verification on samples.

• First-article inspection (FAI) — 100 % dimensional report on the first part, AS9102 / PPAP format on request
• In-process gauging — in-cycle diameter, length, and thread checks at the machine
• CMM inspection — for tight-tolerance features, GD&T, and coaxiality / runout verification
• Optical comparator — profile verification on miniature features and threads
• Surface roughness tester — Mitutoyo SJ-210 or equivalent
• Hardness tester — Rockwell / Vickers for material and heat-treat condition
• SPC reporting — capability indices (Cpk) and full dimensional reports available

Design Considerations (DFM Tips)

• Use the guide bushing for what it is good at — the process excels at small diameters, long slender parts, and high-volume screw-machine geometry.
• Use standard drill and thread sizes — odd-numbered holes and custom threads force single-point work and raise cost.
• Specify thread depth and minor drill — call out the usable thread length and pre-drill diameter for tapped or thread-milled features.
• Avoid sharp internal corners — use standard drill point geometry; cross-holes should be designed for a standard drill or gun-drill cycle.
• Plan the part-off geometry — flat, chamfered, or with a back-side counterbore; the part-off blade and burr condition depend on it.
• Length-to-diameter ratio — slender parts above 10:1 L:D benefit most from Swiss-type; below 4:1 a conventional lathe may be more cost-effective.
• Cross-hole orientation — perpendicular cross-holes are common; off-angle cross-holes are doable but require special tool holders.
• Use free-machining grades — 303 stainless, 12L14 steel, C360 brass, and 2011 aluminum cut faster, hold tighter tolerance, and extend tool life.
• Surface finish callouts — specify Ra value with a clear sampling area; distinguish cosmetic from functional surfaces.

Industries & Applications

• Medical & dental — surgical pins, bone screws, catheter components, endoscopic instrument shafts, dental implant components
• Aerospace & defense — sensor housings, miniature fasteners, hydraulic fittings, instrumentation components
• Electronics & semiconductor — connector pins, RF contacts, miniature shafts, test-probe bodies, sensor stems
• Automotive — fuel-injection components, sensor bodies, electric-motor shafts, specialty fasteners
• Industrial automation — pneumatic fittings, valve spools, linear-motion shafts, miniature bearing sleeves
• Optics & photonics — optical mounts, lens holders, fiber-optic ferrules, precision spacers
• Instrumentation — flow-meter components, sensor bodies, gauge pins, custom instrumentation hardware

Frequently Asked Questions

What is the smallest part you can produce?

Diameter down to ~0.5 mm and length down to ~2 mm. For parts below this size, a review of the model, material, and inspection method is required to confirm feasibility.

Why is Swiss-type turning better for slender parts?

The guide bushing supports the bar close to the cutting zone, so even a long slender part does not deflect like it would on a conventional lathe. This allows tight diameter, straightness, and concentricity on long thin geometry.

What is the minimum batch size you accept?

Swiss-type cells are optimized for volume. We accept batches from a few hundred to over 100,000. For very small quantities, a conventional lathe or a small Swiss may be more cost-effective; we will recommend the right cell.

Can you do cross-holes and milled features on Swiss parts?

Yes. Modern Swiss machines have live tooling and a sub-spindle, so cross-drilling, slotting, and small milled features are produced in the same setup without a secondary operation.

What inspection do you recommend for high-volume Swiss parts?

A combination of in-process gauging at the cell, optical comparator checks, and periodic CMM-based verification on samples. SPC and capability studies (Cpk) are available for production orders.

Do you handle medical-grade stainless and passivation?

Yes. 303, 304, 316, 17-4 PH and other medical-grade stainless steels are routinely processed. Passivation is performed per ASTM A967 or AMS 2700, and material certificates are retained for traceability.

How to Get a Quote

Send a 3D model (STEP / IGES) or a 2D drawing (PDF / DWG) with critical tolerances, the material grade and bar size, requested annual or batch quantity, finish or coating specification, any inspection or documentation requirements, and target delivery date. Within one business day we return DFM feedback, lead time, and a unit / total price. An NDA can be signed before any file exchange.

Process Flow & Manufacturing Sequence

A Swiss-type cell runs a tight, repeatable cycle on bar stock. The guide bushing holds the bar close to the cutting zone, the main spindle and sub-spindle work together, and live tooling performs milling and cross-drilling in the same setup.

1. Bar stock preparation — bar is straightened, cut to length if needed, and loaded into the bar feeder. Bar diameter, hardness, and surface condition are verified against the MTC.
2. Guide bushing selection — the guide bushing is matched to the bar diameter. Proper bushing fit is the foundation of straightness and concentricity on Swiss parts.
3. Bar feeding & collet clamping — the bar advances through the guide bushing, the collet closes, and the Z-zero is established on the bar end.
4. Main spindle rough turning — the main spindle rotates while gang-style tooling on the front slide performs rough OD turning, facing, and grooving. Material is removed at the maximum allowable chip load.
5. Cross-drilling & milling (live tooling) — live-tooled cross-drilling, slotting, and small milled features are produced with the part still supported by the guide bushing.
6. Main spindle finishing — fine finishing pass at reduced feed rate brings diameters and shoulders to final dimension, typically achieving Ra 0.4 – 1.6 µm.
7. Threading (single-point or thread mill) — external threads are produced by single-point turning; internal threads by thread milling or tapping. Standard threads are verified with ring / plug gauges.
8. Sub-spindle pick-off — the part is picked off by the sub-spindle, which retracts through the guide bushing and supports the back end of the part for back-working.
9. Back-side machining (sub-spindle) — back-side features (internal bores, cross-holes, chamfers, knurls) are machined on the sub-spindle while the main spindle is freed for the next part.
10. Part-off — the part is cut off with a parting tool, with burr condition and back-side chamfer verified by in-process gauging.
11. In-process gauging — diameter, length, thread, and concentricity are measured at the cell at each cycle, with automatic offset adjustment for tool wear.
12. Edge break & deburr — light edge-break on critical features; tumble or brush deburr for production runs.
13. Cleaning — aqueous wash, optional solvent rinse, and air-blow to remove chips from internal passages.
14. Final inspection — first-article on the first part, then in-process and periodic CMM-based verification on samples. Surface finish, hardness, and critical dimensions are recorded.
15. Outsourced surface treatment (if applicable) — passivation, electropolishing, plating, anodize, and similar processes routed to qualified partners under our quality system.
16. Packaging & shipping — parts are counted, weighed, and packed per customer specification, with full documentation enclosed.

Material Property Reference

The table below covers the materials most often run on our Swiss-type cells. Free-machining grades are highlighted because they cut faster and extend tool life on this process.

Machinability ratings are relative to AISI 1212 steel = 100%. HB values in (R) for plastics denote Rockwell, not Brinell.

Cost Drivers & Lead Time Factors

Swiss-type is optimized for high-volume production of small-diameter parts. Cost is dominated by programming, tooling, and bar stock yield. The variables below explain why a part may be more or less expensive than expected.

What drives cost

• Material — bar stock cost and machinability rating. Free-machining grades (303, 12L14, 2011, C360) cut faster and extend tool life on Swiss cells.
• Bar stock yield — the part length and bar diameter determine how many parts come out of one bar. Yield loss from remnant and end-of-bar scrap directly affects unit cost.
• Cycle time — the per-part cycle time, set by the number of features, complexity, and finishing pass count.
• Tooling — Swiss-type uses a high count of dedicated tools (turning, grooving, threading, drilling, live-tooled milling); tooling cost is amortized over the production run.
• Tolerance — ±0.025 mm is the standard precision target; ±0.01 mm requires fine finishing, qualified tooling, and CMM verification.
• Batch size — programming and setup are amortized; very small batches are not cost-effective on Swiss cells.
• Surface finish & coating — tight Ra callouts, mirror polish, electropolish, and passivation add secondary processing.
• Inspection & documentation — in-cycle gauging, AS9102 / PPAP, CMM verification, and capability studies (Cpk) add engineering hours.

What drives lead time

• Material sourcing — common bar in 2 – 5 days; certified medical / aerospace bar 1 – 3 weeks.
• Programming & setup — typically 1 – 3 days for new parts (Swiss programs are more complex than conventional lathe programs).
• Tooling build — gang-style tool layout, guide bushing, and any specialty tools typically 1 – 3 days.
• Sample run & first-article — samples produced and inspected before full production release.
• Production run time — the actual cycle time × quantity, plus any planned downtime for tool changes.
• Outsourced processes — passivation, plating, electropolish, anodize, and similar processes 2 – 7 business days at qualified partners.
• Shipping — DHL / FedEx 3 – 5 days international; air freight 5 – 10 days; ocean freight 20 – 35 days.

Typical lead times by scenario

Common Defects & Prevention

Swiss-type defects typically come from bar straightness, guide bushing condition, or tool wear. The list below covers the failure modes we see most often, with the root cause and the standard prevention we apply.

Comparison With Related Processes

Swiss-type competes with conventional lathe, mill-turn, and micro-machining centers. The table below helps pick the right process for a given part.

Industry Standards & Certifications

Our quality system and Swiss-type practice are aligned with the standards below. Customer-required certifications are referenced in the project scope and documented accordingly.

• ISO 9001:2015 — quality management system baseline.
• AS9100D / AS9102 — aerospace QMS, FAI report format.
• ISO 13485:2016 — medical device QMS, applicable to medical and life-sciences parts.
• IATF 16949 — automotive QMS, with PPAP, APQP, and control plan requirements.
• ISO 2768 — general tolerances (medium / fine / very fine classes).
• ASME Y14.5-2018 — GD&T standard.
• ISO 5459 — datums and datum systems.
• ISO 1101 — GPS, including cylindricity, concentricity, and run-out.
• ISO 6410 / ISO 6411 / ISO 6413 — representation of threads, tapped holes, and thread end features.
• ISO 965-1 / ISO 965-3 — ISO general-purpose metric screw threads.
• ASME B1.1 / B1.13M — unified inch / metric screw thread standards.
• ASTM A967 / AMS 2700 — passivation of stainless steel, including medical-grade.
• ASTM A380 — cleaning, descaling, and passivation of stainless steel parts.
• AMS 2700 Method 1 / 2 / 3 — passivation methods for corrosion-resistant steel.
• MIL-DTL-13924 — black oxide coating.
• AMS 2403 / 2404 — electroless nickel plating.
• RoHS / REACH — substance compliance for European market access.
• Conflict Minerals (CMRT / RMI) — reporting for tin, tantalum, tungsten, and gold sourcing.
• FDA / biocompatibility — for medical components, supplied with material certificate and passivation record.

Packaging, Shipping & Documentation

Swiss-type parts are typically small and produced in high volume, so packaging focuses on counting accuracy, surface protection, and clean handling. Documentation is enclosed per customer requirement and retained in our quality system.

Standard packaging

• VCI bag — applied to all ferrous parts to prevent oxidation in transit and storage.
• Sealed poly bag — for medical, optical, or cleanroom-delivered parts.
• Compartmentalized plastic trays — for small parts in production quantities; cells prevent part-on-part contact.
• Tubes with end caps — for long slender parts, with foam plugs to prevent end damage.
• Bulk bags with count — for parts that can tolerate light contact; exact count recorded on label.
• Cardboard cartons with internal partitions — standard outer packaging.
• ESD-safe packaging — for parts that integrate into electronics or semiconductor equipment.
• Labeling — part number, lot / batch, quantity, material, and customer reference on every outer and inner package.

Shipping options

• DHL / FedEx / UPS — international express, 3 – 5 business days door-to-door.
• Air freight — 5 – 10 business days for heavier or consolidated shipments.
• Ocean freight (FCL / LCL) — 20 – 35 days for non-urgent production runs.
• Customer-arranged courier — parts released to a customer-provided account on request.
• EXW, FOB, CIF, DAP — Incoterms supported per customer preference.

Standard documentation

• Certificate of Conformance (C of C) — confirms parts were manufactured to the print and meet specified requirements.
• Mill Test Certificate (MTC) — material certificate retained for every heat lot.
• First-article inspection report (FAI / AS9102) — 100 % dimensional report on the first part.
• Dimensional inspection report — recorded measurements of critical features across the batch.
• Surface finish report — Ra measurements where called out.
• Thread inspection report — for critical threads, on request.
• SPC / Cpk report — capability indices and trend data for production runs.
• Certificate of Origin (CoO) — for customs clearance.
• Commercial invoice & packing list — standard shipping documentation.
• PPAP / APQP package — for automotive customers, including control plan, PFMEA, and capability data.

Related Capabilities & Cross-Services

Swiss-type turning is often one step in a longer workflow. We coordinate the surrounding services so customers get a single point of accountability for the entire part, not a list of subcontractors.

• Post-machining finishing — bead blast, tumble, hand deburr, light polishing, edge-break, and cosmetic buffing in-house.
• Passivation — ASTM A967 / AMS 2700 for stainless steel, including medical-grade passivation with full traceability.
• Electropolishing — stainless steel, microinch finish and improved corrosion resistance.
• Anodizing & plating — Type II / Type III anodize on aluminum, electroless nickel, zinc, tin, gold, and silver plating through qualified partners.
• Black oxide — MIL-DTL-13924 for steel, mild corrosion protection.
• Heat treatment — through-hardening, case hardening, tempering, solution treatment, and aging (e.g. 17-4 PH H900 / H1025 / H1075).
• Light assembly & kitting — fastener installation, sub-assembly, and kit packaging.
• Laser marking & engraving — part numbers, logos, UID, 2D Data Matrix on cylindrical surface.
• Design for manufacturing (DFM) review — feedback on datums, free-machining grades, thread forms, and tolerance before cutting chips.
• CMM inspection & 3D scanning — full GD&T verification, including cylindricity, concentricity, runout, and Cpk capability studies.
• Subcontracted services coordination — single point of contact for heat-treat, plating, passivation, electropolish, and coating partners.

"
