Large component planning
The document is organized around these four planning lenses.

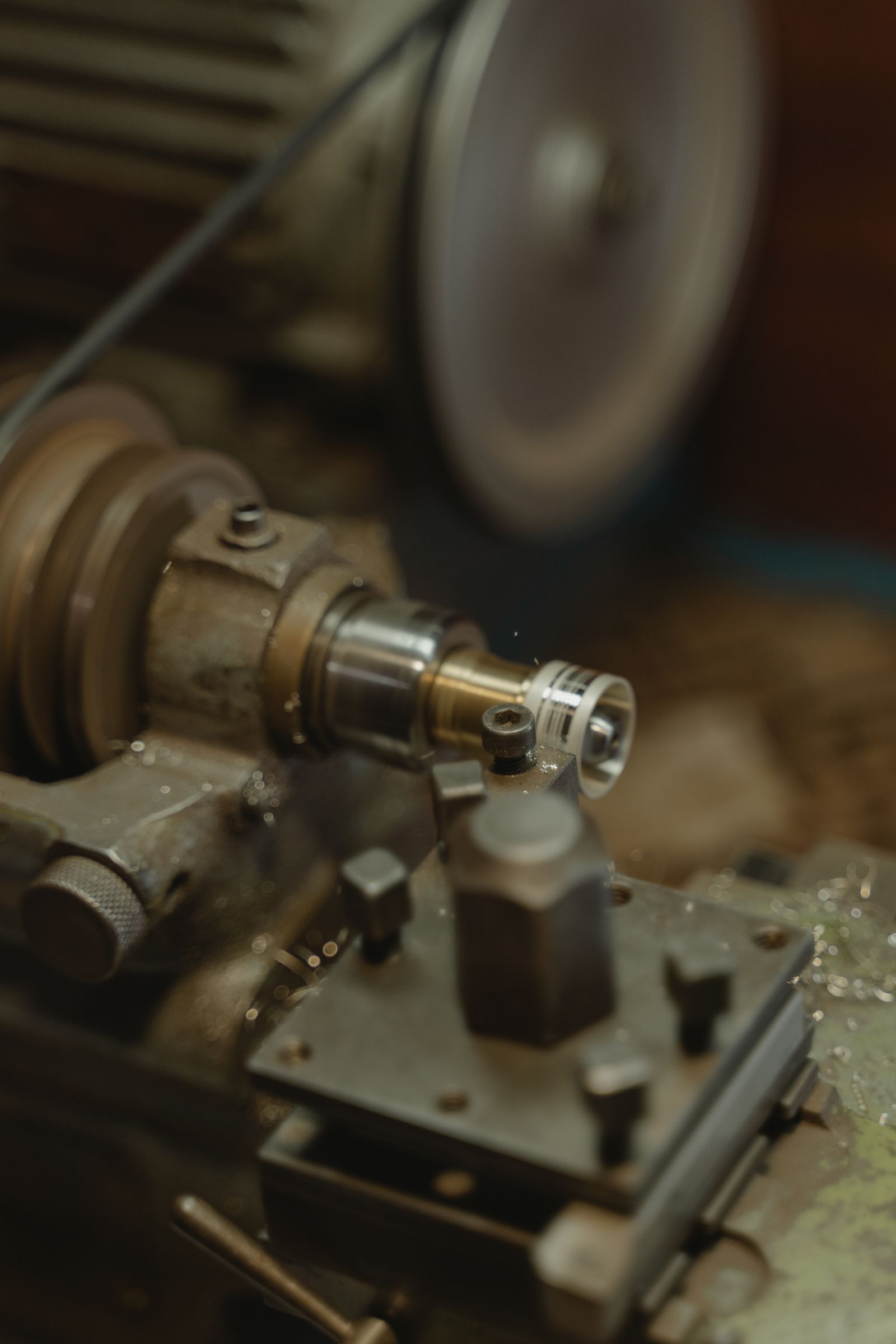

Chucking, Tailstock, and Centerline Control
A process plan confirms the spindle and chuck arrangement, support requirements, lift and loading method, safe clamping length, tool clearance, and the machining sequence. Where needed, tailstock, steady-rest, or other support methods are considered to control deflection.
Selection guidance
Use large-part turning when the core geometry is rotational. Use milling for predominantly flat or prismatic parts, or turn-mill equipment where the rotational component also needs complex secondary features.
Frequently Asked Questions
What is the largest diameter you can turn?
Horizontal turning centers swing up to ? 1,200 mm and turn diameters up to ? 1,000 mm. Vertical turning lathes (VTLs) extend diameter capacity to ? 2,000 – 2,500 mm. Parts above the standard capacity are reviewed for chucking, support, and tool access.
What runout can I expect on a 1,000 mm shaft?
On a properly supported shaft, runout of 0.03 – 0.05 mm TIR is typical across the full length with a single setup. Tighter runout is achievable on critical journals and may require grinding or dedicated measurement planning.
Geometry | Large rotational diameters, bores, and stepped features |
|---|---|
Planning focus | Centerline, chucking, tailstock, and support for long parts |
Material | Carbon and alloy steels, stainless, aluminum, bronze, cast iron |
Typical use | Large shafts, rollers, flanges, hydraulic bodies, drive components |
Standard Tolerances & Achievable Precision
Standard tolerance on turned diameters is ±0.05 mm up to ? 500 mm and ±0.10 mm above ? 500 mm, unless the drawing specifies otherwise. Length tolerances are typically ±0.10 mm. Where a part has multiple diameters, coaxiality and runout are controlled within single-setup capability.
- Standard diameter tolerance: ±0.05 mm up to ? 500 mm, ±0.10 mm above ? 500 mm
- Length tolerance: ±0.10 mm standard; ±0.05 mm on request
- On-request tolerance: ±0.025 mm on dedicated features with qualified tooling
- Tight tolerance: ±0.01 mm achievable on small-diameter, single-setup features
- Default standard: ISO 2768-m for un-declared dimensions; ISO 2768-f / -c on request
- Runout / concentricity: 0.02 – 0.05 mm TIR typical, depending on part stiffness and support
Long-Part Stability and Surface Protection
Suitable materials may include carbon and alloy steels, stainless steel, aluminum, bronze, cast iron, and specialty alloys. Weight, stiffness, chip control, and finish requirements should guide the route.
Protection plan
Preserve bearing, sealing, or alignment diameters through cleaning, transport, and finishing. Any coating on critical fits should be separately specified.
Potential issue | Planning response |
|---|---|
Residual stress or distortion | Sequence roughing and finishing with the material condition and support plan in mind. |
Handling damage | Define protective surfaces, lifting method, and packaging before the final machining step. |
Coating on critical interfaces | Specify masking or a controlled post-finish operation. |
Materials We Machine
Large-part turning covers a wide range of bar stock, forgings, and cast blanks in carbon steel, alloy steel, stainless, aluminum, and other machinable alloys. Stock form is selected for grain direction, forging flow, and the loading capacity of the machine.
- Carbon & mild steel: A36, 1018, 1026, 1045, A572 bar and forging stock
- Alloy steel: 4140, 4340, 8620, EN24, EN19 normalized or pre-hardened (28–34 HRC typical)
- Stainless steel: 304 / 304L, 316 / 316L, 321, 310S, 17-4PH (H1025 / H1150), 410, 420
- Tool & bearing steel: 52100, A2, D2, H13, O1 for rolls, sleeves, and dies
- Aluminum: 6061-T6, 6082-T6, 7075-T6, 2024 billet and forging stock
- Cast iron: ASTM A48 Class 30 / 40, GG25, ductile iron GGG40 / GGG60 blanks
- Bronze & copper alloys: C932 (bearing bronze), C954 aluminum bronze, C110 copper for wear and conductive applications
- Super-alloys (on review): Inconel 625 / 718, Monel 400, Hastelloy for corrosion or high-temperature shafts
Quality Control & Inspection
Inspection for large turned parts focuses on diameters, runout, concentricity, taper, and the relationship between features on the rotational datum. Hand tools are used for in-process checks; CMM and laser systems are used for full-release reports.
- CMM inspection: horizontal-arm and large-envelope CMMs for multi-diameter shafts and housings
- Surface roughness tester: portable Ra testers for as-turned and post-finish surfaces
- Hardness tester: portable or bench hardness testing (Rockwell, Brinell, Vickers) for material and heat-treat verification
- Calipers & micrometers: large-range digital calipers, external / internal micrometers up to ? 2,000 mm
- Indicators & dial gauges: runout, concentricity, and face-squareness checks on the machine and inspection bench
- Thread gauges: plug and ring gauges for standard threads; profile projector or CMM for non-standard threads
- First-article inspection: full-dimensional report against drawing or model before run continues
- In-process inspection: datum and feature checks between roughing and finishing to manage stock and distortion
- Final inspection report: dimensional report, material certificate, and finish confirmation shipped with the part
Do you turn long shafts between centers?
Yes. We use steady rests and tailstocks for shafts up to 4,000 mm long. For longer or thin shafts, we review deflection, support positions, and material condition in the RFQ stage.
Can you machine pre-hardened alloy steel?
Yes. We routinely machine 4140 / 4340 in the 28 – 34 HRC range. Higher hardness (above ~ 45 HRC) typically requires grinding or EDM after roughing. Material condition, hardness range, and any required post-machining heat treatment should be on the drawing.
What information do I need to provide for a turning RFQ?
Send the 3D model, 2D drawing with GD&T, material grade and condition (forged, rolled, cast), any required heat treatment, batch quantity, finish requirement, and inspection expectation. For long shafts, indicate whether a between-centers setup is required.
How to Get a Quote
To quote a large-part turning job, send the 3D model (STEP, IGES, Parasolid, or native CAD), 2D drawing with GD&T and datums, material grade and stock form (bar, forging, casting), batch quantity, any heat treatment, required finishes, critical tolerances, and inspection expectations.
You will receive a DFM review with comments on setup strategy, support, and any tolerance refinements, followed by a written quote that lists lead time, unit price, finish options, and inspection report scope.
Process Flow & Manufacturing Sequence
Large-part turning follows a defined sequence from blank verification to final inspection. The route is built around the centerline, chucking or between-centers setup, support strategy, and the order in which diameters, bores, and shoulders must remain coaxial. Each step below is a discrete production operation with its own setup, tooling, and inspection checkpoint.
- Material receipt & verification. Incoming stock (bar, forging, or casting blank) is checked against the purchase order and material certificate: grade, heat number, condition (rolled, forged, normalized, pre-hardened), and dimensional stock size.
- Stock cutting & facing. Bar stock is cut to rough length on a band saw or abrasive cut-off, leaving stock for face milling both ends. Forging or casting blanks are inspected for scale and surface defects before setup.
- Chuck / fixture selection. The chucking method is selected from 3-jaw / 4-jaw chucks, expanding mandrels, custom jaws, or a between-centers setup with steady rests. Heavy parts may use a faceplate with bolted clamps.
- Support planning. For long parts, the number and position of steady rests and the use of a tailstock are determined from the length-to-diameter ratio and the material condition. Deflection analysis is reviewed for slender shafts.
- Centerline establishment. The centerline is indicated in to the spindle axis with a dial indicator, and the part is clocked to minimize runout. For between-centers work, the centers are carefully aligned and the tailstock adjusted for thermal growth.
- Rough turning — OD. Heavy roughing passes remove the bulk of the material at high metal-removal rates using CNMG-style inserts and optimized chip breakers. Multiple passes step down the diameter toward the finish allowance.
- Rough boring (where required). Internal diameters are rough-bored with a single-point boring bar, leaving a finish allowance for fine boring or grinding. Bar extension is kept short to control deflection.
- Stress-relief cycle (where required). For deep-roughed shafts or heavy weldments, an intermediate stress-relief cycle is run before finish turning to control distortion in the final pass.
- Semi-finish turning. Light cuts bring all diameters to within 0.2 – 0.5 mm of final size, leaving a consistent stock allowance for finishing. Concentricity and runout are re-checked at this stage.
- Finish turning — diameters, faces, tapers, profiles. Final-size cuts are produced on all OD / ID diameters, faces, grooves, and tapers. Feed and speed are tuned to the required surface finish and tolerance.
- Threading. Threads are cut in a single setup where possible: metric, UNC / UNF, ACME, buttress, API round, or special profiles. Thread pitch, hand, and engagement length are verified against the drawing.
- Keyways & flats (where required). Keyways are milled after turning using a slotting cutter or end mill on the OD. Flats are produced with a facing tool or a dedicated milling attachment.
- Edge break & deburr. Sharp edges on chamfers, threads, and transitions are broken per the drawing callout. Hand-deburr or light chamfer-mill on selected edges; preserve sharp edges where the drawing requires them.
- In-process inspection. Diameter, runout, and concentricity are checked between operations, with formal first-article inspection on the first part. CMM or large-OD micrometer is used for full-release reports.
- Grinding or super-finishing (if required). Parts that need Ra < 0.4 µm or sub-±0.01 mm tolerance are routed to cylindrical or centerless grinding, then super-finishing.
- Surface treatment (if required). Parts that need plating, anodizing, passivation, or other finishes are sent to approved partners with masking on critical diameters as defined by the drawing.
- Final inspection & documentation. Full-dimensional report against the drawing, runout and concentricity data, material certificate, finish confirmation, and any required FAI or PPAP documentation are compiled for shipment.
- Packaging & shipping. Long shafts are supported on V-blocks or shipped in custom cradles; heavy parts are crated with engineered lift points. Critical surfaces receive VCI film and protective sleeves.
Material Property Reference
Material selection for large-part turning is driven by tensile and yield strength, hardness, machinability, and the heat-treatment condition of the stock. The table below lists typical materials with representative mechanical and physical properties used as starting points for DFM review.
Material | Density (g/cm?) | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (HB) | Machinability (%) |
|---|---|---|---|---|---|
Mild steel A36 | 7.85 | 400 – 550 | 250 | 119 – 159 | 70 |
Carbon steel 1045 | 7.85 | 565 | 310 | 163 – 197 | 60 |
Alloy steel 4140 (pre-hard) | 7.85 | 1,080 | 930 | 285 – 321 | 55 |
Alloy steel 4340 (annealed) | 7.85 | 745 | 470 | 217 | 50 |
Alloy steel 8620 (annealed) | 7.85 | 530 | 385 | 149 | 65 |
Stainless 304 | 8.00 | 515 | 205 | 202 | 45 |
Stainless 316L | 8.00 | 485 | 170 | 217 | 40 |
Stainless 17-4PH (H1150) | 7.80 | 1,030 | 1,000 | 352 | 35 |
Bearing steel 52100 | 7.81 | 2,250 (hardened) | 1,950 (hardened) | 650 – 700 | 30 |
Aluminum 6061-T6 | 2.70 | 310 | 276 | 95 | 90 |
Aluminum 7075-T6 | 2.81 | 572 | 503 | 150 | 70 |
Cast iron ASTM A48 Class 30 | 7.20 | 207 | – | 180 – 220 | 75 |
Bronze C932 (bearing) | 8.93 | 241 | 138 | 65 | 80 |
Aluminum bronze C954 | 7.45 | 586 | 241 | 170 – 195 | 50 |
Inconel 718 (aged) | 8.19 | 1,375 | 1,100 | 360 – 420 | 15 |
Cost Drivers & Lead Time Factors
Cost and lead time for large-part turning are driven primarily by the stock form (bar, forging, or casting), the OD — length envelope, the number of diameters and shoulders, support requirements (steady rests, tailstock), the share of features that need finish tolerance, and any required heat treatment, grinding, or super-finishing. Material removal rate (MRR) on heavy roughing is a major cycle-time factor: stainless, Inconel, and high-hardness alloys require lower cutting parameters. Tight tolerance and fine surface finish add a finish-pass operation, qualified tooling, and dedicated inspection time. The table below summarizes typical lead times for common scenarios.
Scenario | Material Lead Time | Machining Lead Time | Total (working days) |
|---|---|---|---|
Prototype from bar stock (1 – 2 units) | 1 – 3 days | 5 – 8 days | 6 – 10 days |
First-of-kind from forging | 14 – 30 days | 8 – 14 days | 22 – 40 days |
Long shaft with steady rests (1,500 – 4,000 mm) | 3 – 7 days | 10 – 15 days | 12 – 20 days |
VTL work (? 1,000 – 2,500 mm) | 3 – 10 days | 10 – 18 days | 12 – 25 days |
Pre-hardened alloy (28 – 34 HRC) production | 5 – 10 days | 8 – 14 days | 12 – 22 days |
Follow-on grinding or super-finishing | as above | + 3 – 7 days | + 3 – 7 days |
Heat treatment (through-hardening, tempering, aging) | + 3 – 7 days | + 1 – 2 days | + 4 – 9 days |
Recurring batch with stock material | 0 – 2 days | 5 – 10 days | 5 – 10 days |
Comparison With Related Processes
Large-part turning is often selected alongside or in place of large-part milling, vertical turning, cylindrical grinding, and external cylindrical broaching. The table below compares the four most common alternatives for large rotational work.
Aspect | Large-Part Turning | Large-Part Milling | Cylindrical Grinding |
|---|---|---|---|
Geometry suited to | Rotational shafts, hubs, flanges, sleeves, valve bodies | Prismatic parts, pockets, mounting faces, weldments | Hardened journals, bearing diameters, seal surfaces |
Work envelope (typical) | ? 1,200 mm swing, 4,000 mm length; VTL ? 2,500 mm | 2,000 — 1,500 — 800 mm on bridge; longer on long-bed | ? 300 – 600 mm typical; between centers up to 4,000 mm |
Tolerance band | ±0.05 mm diameter; ±0.025 mm tight | ±0.05 mm linear; ±0.025 mm tight | ±0.005 – ±0.01 mm with high roundness |
Typical materials | Bar, forging, casting — all steels, stainless, aluminum | Plate, weldments, cast housings | Hardened steels, tool steel, hard-faced alloys |
Cost vs. this process | – | Lower for prismatic geometry; higher for round features | Higher per part; justified for hardened / precision surfaces |
When to choose | Rotational parts where OD / ID features drive the design | Prismatic parts with multiple features, weldments, plate housings | Hardened or precision surfaces where turning cannot meet the spec |
Industry Standards & Certifications
- ISO 9001:2015 — Quality management system requirements; baseline certification for our production control
- AS9100D — Aerospace quality management system; applied to flight-critical shaft, rotor, and hydraulic components
- ISO 13485:2016 — Medical device QMS; applied to medical equipment shafts and large rotational medical components
- IATF 16949 — Automotive QMS; applied to large drivetrain, axle, and powertrain components
- RoHS & REACH — Restriction of hazardous substances and chemical substances; applied to material selection and surface treatment
- ITAR — U.S. International Traffic in Arms Regulations; applied to defense-related shafts and rotor components under controlled programs
- ISO 2768 — General tolerances for linear and angular dimensions (medium, fine, coarse classes)
- ASME Y14.5 / ISO 1101 — Geometric dimensioning & tolerancing; GD&T interpretation on drawings
- ISO 5459 — Datums and datum systems; used to define the rotational datum on a turned part
- API Spec 7-1 / 5B — Rotary shouldered connections and casing / tubing threads; applied to oilfield components
- ASTM A967 — Chemical passivation treatments for stainless steel parts
- ISO 965-1 / ISO 261 — ISO general-purpose metric screw threads; thread geometry and limits
- PPAP / FAI per AIAG — Production part approval process and first-article inspection per automotive and aerospace practice
Packaging, Shipping & Documentation
Large turned parts are packaged for transit against corrosion, impact, and distortion. Long shafts are supported on V-blocks, in custom cradles, or hung in dedicated racks; heavy rotational parts are mounted on engineered skids or fit into custom crates. Standard documentation is shipped with the part; additional documents (PPAP, FAI, signed drawings) are provided per program requirement.
- Cleaning & preservation. Parts are cleaned of coolant, chips, and swarf, then preserved with VCI film, oil, or desiccant as required by the material and storage window.
- Surface & thread protection. Critical diameters, threads, and seal surfaces receive dedicated sleeves, plugs, or caps. Bearing and seal surfaces are wrapped in VCI-impregnated paper.
- Shaft cradles & V-blocks. Long shafts are shipped on V-block supports or in custom cradles that contact the part at calculated positions to prevent sag and transit damage.
- Crating & palletizing. Heavy parts are mounted on engineered skids, bolted to pallets, or fit into custom crates rated for road, sea, or air freight as required.
- Lift points & handling marks. Lift points are marked on the crate and the part (where the customer requests) to ensure safe loading and unloading. Long shafts are typically lifted with webbing slings at balanced positions.
- Shipping options. Standard road freight for domestic; sea freight (FCL / LCL) for export; air freight for time-critical or high-value parts. Incoterms 2020 (EXW, FOB, CIF, DAP, DDP) applied per the quote.
- Standard documents. Certificate of Conformance (C of C), Material Test Certificate (MTC / mill cert), dimensional inspection report including runout and concentricity data, and surface-finish confirmation.
- FAI report. First-article inspection report against the drawing or 3D model, including all GD&T callouts and datum references, on the first part of each lot.
- PPAP & control plans. Available for automotive and aerospace programs per AIAG / AS9100 requirements.
- Traceability. Heat number, batch number, and operator / machine ID retained for full traceability per the program quality plan.
- Digital delivery. Inspection reports, FAI, and material certificates can be delivered as signed PDFs, with raw CMM data (e.g. IJK, IGES DMIS) on request.
Large Part Turning Services
A source-aware reference guide to large rotational components, chucking, support, datum control, and turning-route inputs.
Envelope Does the part fit the usable work zone, not only the nominal table? | Handling How will lifting, support, and clamping protect the functional surfaces? |
|---|---|
Datum path Which faces or axes must remain related through every orientation? | Verification Can the critical geometry be measured after the final setup? |
Rotational Envelope and Support
Large part turning produces rotational features on components where diameter, length, mass, or workholding make setup and support central to the manufacturing plan. The part may require facing, outside-diameter turning, boring, grooves, threads, tapers, or live-tool features while maintaining a stable centerline.
Large-part turning focuses on the centerline, support, and safe handling of heavy rotational workpieces.
Planning lens | What to provide |
|---|---|
Part envelope | Finished size, stock condition, estimated mass, and any no-clamp zones. |
Handling | Lift points, support requirements, transport limitations, and surface-protection constraints. |
Functional geometry | Define finished envelope, estimated mass, the primary axis, gripping surfaces, lifting points, critical diameters, bore requirements, runout, support limitations, and any secondary milled or drilled features. |
Part geometry
Key features can include large external diameters, long shafts, bores, tapers, face grooves, threads, sealing surfaces, concentric stepped diameters, and live-tool drilling or milling details.
Typical component context
Typical components include rollers, large shafts, adapters, rings, couplings, hydraulic bodies, flanges, drive components, and machine or energy-system interfaces.
Setup principle: For a large component, the route must protect not only the finished surface but also the relationship between faces or axes reached in different orientations.
Verifying Large Diameters and Runout
Inspection commonly targets large diameters, bore size, taper, runout, concentricity, face location, thread form, surface condition, and the relationship between functional features on the rotational datum.
Key Process Parameters
Parameter | Typical Range / Specification |
|---|---|
Swing over bed | Up to ? 1,200 mm on heavy-duty horizontal turning centers; up to ? 2,000 mm on vertical turning lathes |
Maximum turning diameter | Up to ? 1,000 mm on horizontal machines; ? 2,500 mm on VTLs |
Maximum turning length | Up to 4,000 mm between centers with steady-rest support; longer shafts reviewed for deflection |
Maximum part weight | Up to 5,000 kg chucked; up to 10,000 kg with steady rest / tailstock support |
Standard diameter tolerance | ±0.05 mm on diameters up to ? 500 mm; ±0.10 mm above ? 500 mm |
Tight diameter tolerance | ±0.025 mm on request; ±0.01 mm with engineered setup and qualified tooling |
Surface finish (as-turned) | Ra 1.6–3.2 µm on diameters; Ra 0.8 µm on finish-passed surfaces |
Runout on critical features | 0.02 – 0.05 mm TIR on machined diameters, depending on length-to-diameter ratio |
Concentricity / coaxiality | 0.03 mm achievable on multi-diameter parts with single setup |
Threading range | M10 – M200 metric; ?" – 8" imperial; ACME, buttress, and API round threads on request |
Batch size | 1 – 100+ units; single prototype, low-volume batch, and recurring production |
Lead time | 5 – 15 working days for typical parts; long shafts and large-diameter work reviewed per RFQ |
Accepted file formats | STEP (.step / .stp), IGES (.igs), Parasolid (.x_t), DXF for 2D profiles, native CAD on request |
Typical machine platforms | Heavy-duty horizontal turning centers, vertical turning lathes (VTL), turn-mill machines, chucking + between-centers lathes with steady rests |
Surface Finish Options
As-turned surfaces meet most functional requirements. Secondary finishes address corrosion, wear, sealing, and cosmetic needs while protecting critical functional datums.
- As-turned: standard machined finish, Ra 1.6–3.2 µm on diameters
- Bead blast: matte cosmetic texture for visible or painted-prep surfaces
- Anodize Type II: aluminum parts, standard or custom color
- Anodize Type III (hard anodize): wear surfaces on aluminum shafts and sleeves
- Electroplating: zinc, nickel, electroless nickel, tin, or chrome for corrosion / wear protection
- Black oxide: mild corrosion resistance and appearance for steel components
- Passivation: citric or nitric passivation for stainless steel per ASTM A967
- Powder coat / painting: industrial finish over blast-prepped surface; masking on critical mating faces
- Polishing: mirror or near-mirror finish on seal surfaces, journals, and visible decorative areas
- Grinding & super-finishing: cylindrical or centerless grinding, then super-finishing, where Ra < 0.4 µm is required
- Laser marking: permanent part numbers, heat codes, datums, and traceability marks
Design Considerations (DFM Tips)
- Keep length-to-diameter ratio in mind. Long shafts need steady rests, tailstock support, or a between-centers setup to control deflection; review this before quoting.
- Standardize thread forms. Use coarse-pitch ISO metric or UNC / UNF imperial threads; specify ACME or buttress threads with hand and engagement length.
- Add relief grooves at diameter transitions. Sharp shoulders trap the tool and leave burrs; include a small relief or chamfer to clear the insert.
- Use radii on OD / ID transitions, not sharp internal corners; this controls tool stress and surface finish on shoulders.
- Hold tight tolerance to functional diameters. Bearing journals, seal grooves, and thread pilot diameters need tighter callouts; free diameters can be standard.
- Specify surface finish on seal and bearing surfaces. Ra 0.4 – 0.8 µm is typical for dynamic seals; specify it on the drawing rather than expecting it by default.
- For deep internal bores, indicate whether rough or finish boring is required and the depth-to-diameter ratio acceptable.
- Avoid thin, tall features that can deflect during machining or heat treatment; review chucking and support before release.
- Allow stock for forging or casting scale on as-supplied blanks; this is machined off in roughing and should be specified explicitly.
- Call out concentricity / runout rather than relying on diameter tolerances alone to control multi-diameter relationships.
Do you offer grinding for tight-tolerance turned surfaces?
Yes. Cylindrical and centerless grinding, plus super-finishing, are available for diameters that need Ra < 0.4 µm or tolerances below ±0.01 mm. We can quote grinding as a follow-on operation after rough turning.
Common Defects & Prevention
Defects on large turned parts usually trace back to deflection, vibration, chucking distortion, or missing workholding support. The table below lists the most common defects and the prevention strategies we apply in production.
Defect | Cause | Prevention |
|---|---|---|
Shaft deflection on long slender parts | Excess length-to-diameter ratio, insufficient support between roughing and finishing | Add steady rests at calculated positions, use tailstock pressure, balanced roughing to leave symmetric stock, finish in a single supported setup |
Concentricity drift across multiple diameters | Part re-chucked between features, chuck wear, indicator error | Machine all critical diameters in a single setup, indicate to the spindle axis after each move, qualified chuck or expanding mandrel |
Runout at finished diameters | Centerline offset, jaw marks, thermal growth during long cuts | Indicating in to the spindle, balanced chucking pressure, allow cool-down between roughing and finishing on tight-tolerance parts |
Chatter on long overhang features | Tool overhang too long, cutting forces excite tool/part natural frequency | Reduce tool overhang, switch to larger shank or boring bar, adjust spindle speed away from resonance, lighter radial engagement |
Built-up edge on stainless or aluminum | Low cutting speed, wrong insert grade, insufficient coolant | Use sharp coated inserts with positive geometry, higher cutting speed, high-pressure coolant, climb turning where applicable |
Thread profile error (pitch, angle, runout) | Tool wear, spindle encoder error, poor thread tool setup | Calibrate spindle encoder periodically, set thread tool on optical profile projector, use fresh insert, verify with thread gauge or CMM |
Burr formation at shoulders and threads | Tool exit on a free surface, no chamfer or relief callout, dull insert | Specify chamfer or edge break on drawing, use sharp insert, micro-chamfer tool on selected features, hand-deburr per callout |
Distortion after heat treatment | Asymmetric quench, residual stress from heavy roughing, fixturing distortion | Stress-relieve before finish machining, finish critical diameters after heat treat (or use pre-hard stock), use press quench or fixture for minimal distortion |
Related Capabilities & Cross-Services
Large-part turning is frequently paired with adjacent operations to deliver a complete part or sub-assembly. The capabilities below are commonly combined with turning to reduce handling, control datum chains, and consolidate quality responsibility.
- Large-part milling — for prismatic features (flange faces, drive flats, mounting patterns) that share a build with the turned body
- Vertical turning lathe (VTL) work — for very large-diameter, short-length rotational parts (flanges, rings, table tops)
- Cylindrical & centerless grinding — for follow-on finishing of journals, bearing surfaces, and seal diameters that need tighter tolerance than turning provides
- Super-finishing — for surface finishes below Ra 0.4 µm on bearing, seal, and hydraulic surfaces
- Deep-hole drilling & gun-drilling — for long axial bores, oil passages, and cooling channels in shafts and rolls
- Keyway broaching & slotting — for keyways and internal slots produced in a secondary operation
- Heat treatment — through-hardening, case-hardening, tempering, nitriding, and aging routed through approved partners
- Surface treatment — chrome plating, electroless nickel, black oxide, passivation, and other finishes for wear and corrosion protection
- Dynamic balancing — for shafts, rolls, and rotors that need to be balanced to G2.5 or G6.3 grade per ISO 1940
- CMM inspection & laser tracker — for full-release dimensional reports on long shafts and parts that exceed standard CMM envelope
- Rollers and large shafts
- Rings, couplings, and adapters
- Hydraulic bodies and flanges
- Drive and power transmission components
- Machine and energy-system interfaces
Industries & Applications
- Power transmission: large drive shafts, pinion shafts, rotor shafts, gear blanks
- Industrial machinery: rolls, drums, sleeves, large hubs, and bearing housings
- Fluid systems: pump shafts, valve bodies, flanges, and large cylindrical fittings
- Energy: generator rotor components, turbine hardware, wind and hydro equipment shafts
- Marine & shipbuilding: propeller shafts, rudder hardware, large diameter pins and bushings
- Heavy equipment & transport: axle components, hub assemblies, large fasteners
- Automation & robotics: large rotational bases, precision sleeves, and drive rollers
Application context
Applications include power transmission, industrial machinery, fluid systems, transport equipment, energy equipment, marine hardware, automation, and custom replacement components.
RFQ check: Share assembly references, transport constraints, datum scheme, inspection expectation, and any weldment/casting information with the part model.
—
