What the Process Does

CNC boring is a precision hole-machining process used to control the final size, position, alignment, and surface condition of an existing hole. A boring tool removes a controlled amount of material from a drilled or pre-machined opening, making the process useful when the required bore is more demanding than a drilled hole alone.

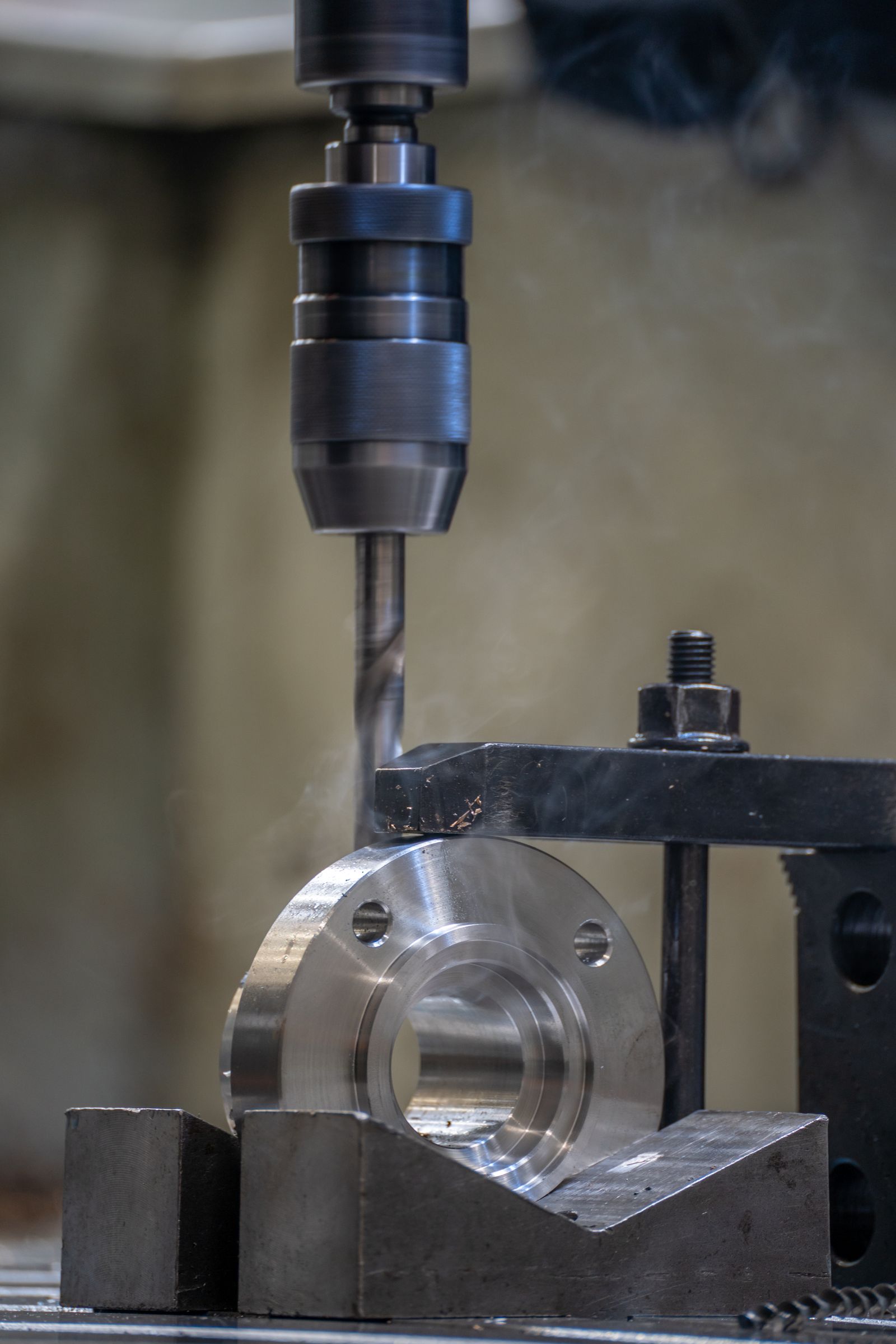

Process Flow

The machining sequence should be planned around the part's functional datums, feature access, material behavior, and the required inspection method. The detailed route is ultimately governed by the actual machine configuration, workholding, tool availability, and production quantity.

Design Intent

A bore should be specified with its final diameter, tolerance, depth, datum relationship, coaxiality or positional requirement, entry chamfer, and surface finish. For a bearing or seal, identify the mating component and the intended fit class.

Part Geometry and Materials

Material Selection

Aluminum, steel, stainless steel, cast iron, brass, bronze, titanium, and engineering plastics can all require boring when final fit and position are important. Material behavior affects tool selection, vibration control, and surface finish.

Technical Planning and Quality

Before Production

A manufacturability review should confirm that the tolerance scheme is functional, the specified material is available, the workholding leaves access to critical faces, and the measurement plan can verify all requirements without ambiguity. Where an assembly interface is critical, provide the mating-part information or fit requirement.

Application Context

Power transmission, industrial machinery, robotics, fluid handling, automotive, aerospace, automation fixtures, and precision instrumentation commonly rely on bored features.

When to Choose Another Process

Choose boring when a hole must meet a controlled final size, alignment, or finish requirement. For a threaded hole, tapping may be needed; for a close-fit plain hole, reaming can also be considered depending on the geometry and tolerance.

Key Process Parameters

Materials We Machine

• Aluminum alloys — 6061-T6, 7075-T6, 2024-T3, 6082, 5052, A356, A357 castings
• Carbon and alloy steels — 1018, 1045, 4140 pre-hard, 4340 Q&T, EN24, EN26
• Stainless steels — 303, 304 / 304L, 316 / 316L, 321, 347, 17-4PH, 15-5PH, 2205 duplex
• Tool steels and bearing steels — A2, D2, O1, S7, H13, 52100
• Cast iron and ductile iron — gray iron GG25, ductile iron 60-40-18, ADI grades
• Brass, bronze, and copper — C360 brass, C932 bearing bronze, C954 aluminium bronze, C110 copper
• Titanium — Grade 2, Grade 5 (Ti-6Al-4V), Grade 5 ELI
• Engineering plastics — POM (Delrin), PEEK, PTFE, nylon, polycarbonate for non-metallic bearing seats

Standard Tolerances & Achievable Precision

Boring is the right process when a hole must be controlled to a final size, location, and finish beyond what drilling alone delivers. The achievable accuracy depends on the depth-to-diameter ratio, the stiffness of the setup, and the material.

• Diameter: ±0.025 mm standard, ±0.013 mm on precision bores, ±0.05 mm general tolerance
• Roundness: 0.005–0.020 mm depending on bore size and material
• Cylindricity: 0.010–0.030 mm across the bore length
• Concentricity between bores: 0.01–0.03 mm
• Position relative to a datum: ±0.025 mm, with full GD&T on request
• Perpendicularity to a reference face: 0.02–0.05 mm / 100 mm
• Default linear tolerance per ISO 2768-m if the drawing does not call out otherwise

Quality Control & Inspection

Inspection is selected to match the bore's tolerance and accessibility. Bores below ?6 mm require special equipment; very deep bores are checked with air gauges or bore gauges designed for that range.

• CMM for diameter, position, concentricity, perpendicularity, and other GD&T features
• Internal diameter gauges, bore gauges, and air gauges for size and roundness
• Surface roughness tester for Ra on accessible bores
• Hardness tester (Rockwell / Vickers / Brinell) for heat-treated bores and bearing seats
• Digital calipers, micrometers, and depth gauges for shop-floor checks
• First-article inspection against the full drawing; in-process checks at rough and finish stages
• Final inspection report and material certification (EN 10204 3.1) on request

Design Considerations (DFM Tips)

• Always specify the start condition for the bore: drilled, cast, forged, or pre-machined. The starting allowance drives tool choice and final accuracy.
• Keep bore depth-to-diameter within 10:1 for routine boring; deeper bores need an extended tool holder and a stability review.
• Indicate which bore is the primary datum so the fixture and tool plan are built around a single reference.
• Add a chamfer or entry radius at the bore mouth — it protects the tool on entry and helps alignment of mating parts.
• For stepped bores, dimension each step clearly. Avoid tight tolerance on a deep step where a finish-boring pass can be done after roughing.
• If the bore is a bearing or seal seat, name the mating component and the fit class (H7/g6, H6/h5, etc.) on the print.
• Tight diameter tolerance on a long bore drives up cycle time — flag any feature that genuinely needs precision versus features that only need to be controlled loosely.
• For thin walls, leave enough material to avoid deflection under boring forces; flag the wall thickness on the print.
• Where a bore must align with an external diameter, call out concentricity or coaxiality — it sets the inspection method, not just the part geometry.

How accurate is CNC boring?

Standard boring holds ±0.025 mm on diameter with 0.005–0.020 mm roundness. With fine-boring heads, repeatability is closer to ±0.005 mm on small and mid-range bores. The exact result depends on the depth-to-diameter ratio, material, and the machine.

What information is needed to quote a boring job?

The 3D model, drawing with GD&T, material grade and hardness, start condition for the bore (drilled / cast / forged), order quantity, and any required surface finish or inspection report. With those, we can recommend the right process and the most stable fixturing strategy.

How to Get a Quote

Send the 3D model, 2D drawing with GD&T, material grade, start condition for the bore, order quantity, and any surface finish, plating, or inspection requirements. For tight tolerance or large bores, include hardness spec and the mating component so we can recommend the right tool and process.

You receive a written quote within one working day including DFM feedback, the proposed boring and inspection route, lead time, and unit price. Where a secondary operation (honing, grinding, fine-boring) gives a better result at lower cost, it is called out in the quote.

Process Flow & Manufacturing Sequence

A CNC boring operation is built around an existing hole — drilled, cast, or pre-machined — that must be enlarged and finished to a controlled size, position, and surface. The sequence below is the standard route; the actual selection of tool, machine, and parameters is set by the part's diameter, depth, and material.

1. Review the print and starting condition — confirm the starting bore size, material, hardness, and any prior operations (drilled, cast, forged, or rough-bored); the starting allowance drives tool selection.
2. Workholding and datum set — the part is clamped in a vice, fixture, or chuck; the primary boring datum is set to a known face, bore, or OD so size and position reference the same geometry throughout the cut.

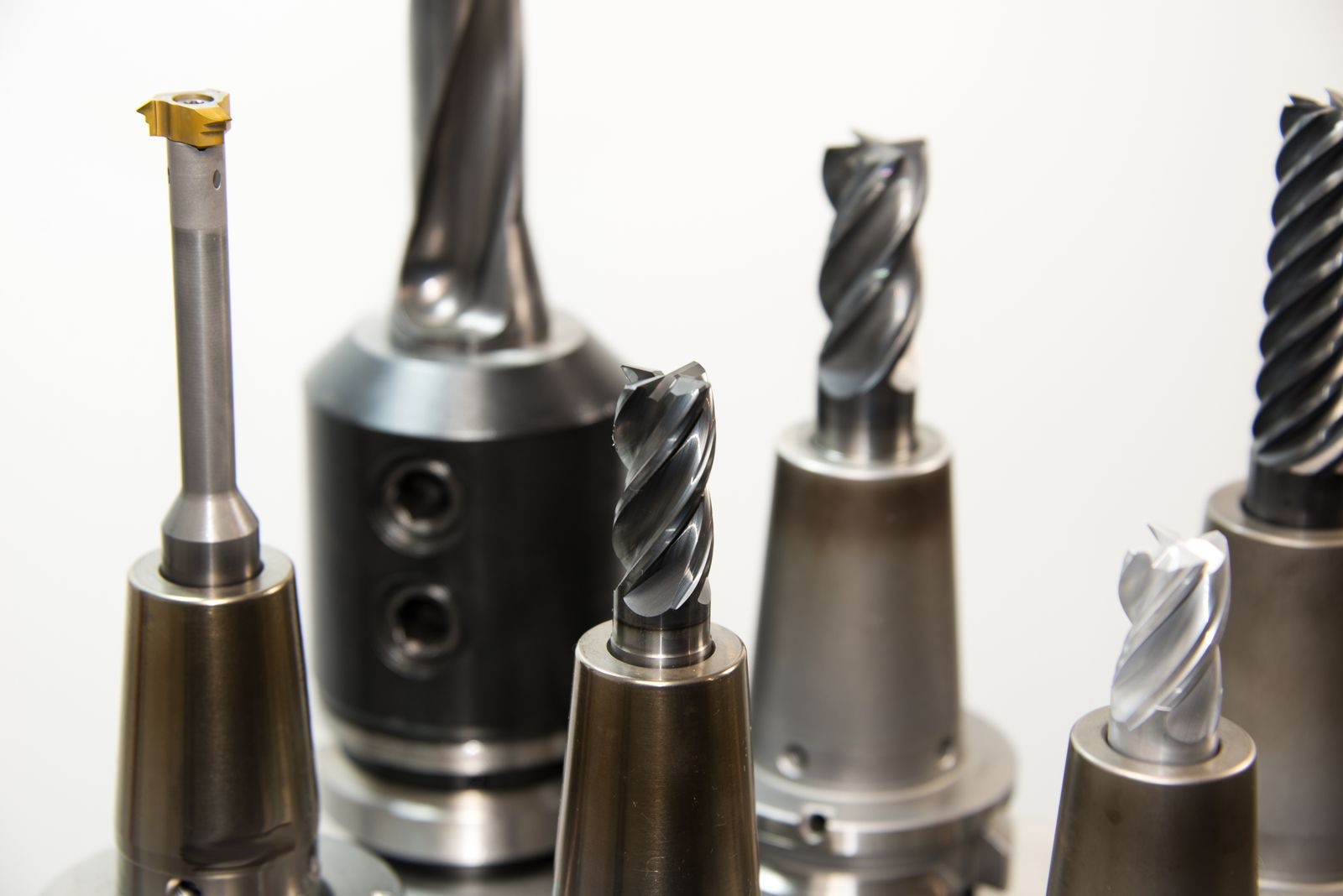

3. Tool selection — single-point boring bar for general work, indexable roughing head for heavier stock, fine-boring head with micron adjustment for tight tolerance and finish.
4. Rough boring — heavy stock is removed with a stepped roughing tool or a carbide bar; radial depth-of-cut is balanced against chatter and machine power.
5. Semi-finish boring — leaves a small, uniform stock allowance (typically 0.2–0.5 mm on diameter) for the finish pass and reduces deflection in the final cut.
6. Finish boring — final size is reached with a sharp, light-cut tool, controlled chip load, and a dwell at the bore mouth to clean up the exit.
7. Edge break and chamfer — a 0.2–1.0 mm chamfer is added at the entry and exit to protect the bore and ease assembly.
8. In-process gauging — bore size, roundness, and (where possible) cylindricity are checked between rough and finish passes; the fine-boring head is adjusted as needed.
9. Secondary finishing — honing, lapping, or burnishing is performed when the print calls for very fine finish, sub-5 µm roundness, or controlled surface texture.
10. Final inspection and documentation — size, position, geometric tolerances, and surface finish are measured against the print and recorded on the inspection report.

Material Property Reference

Cost Drivers & Lead Time Factors

Boring cost and lead time are driven by the starting bore condition (cast, forged, or drilled), the diameter and depth-to-diameter ratio, the required tolerance and surface finish, and any secondary finishing such as honing. Tooling cost is moderate — boring uses standard bars and heads — but precision boring adds gauging and trial-cut time.

Industry Standards & Certifications

• ISO 9001:2015 — quality management system for all production work
• AS9100D — aerospace QMS for landing-gear, actuator, and engine-mount bores
• ISO 13485:2016 — medical device QMS for instrument pivot bores and implant-related bores
• IATF 16949 — automotive QMS for engine, transmission, and chassis bores
• ISO 2768 (general tolerances) and ISO 286 (limits and fits) for default tolerancing on bores
• ASME Y14.5 and ISO 5459 for GD&T on position, cylindricity, concentricity, and perpendicularity
• RoHS, REACH, and DFARS compliance on material sourcing and plating
• ITAR registration for defence-related boring work
• ISO 4406 / NAS 1638 for fluid cleanliness on hydraulic and pneumatic bores

Packaging, Shipping & Documentation

Bored parts are packed to protect critical bores from contamination, impact, and corrosion. Bearing or seal bores are usually wrapped individually with VCI paper, plugged, or capped, and a desiccant pack is added for long-distance shipments.

• Standard packaging — VCI wrap, individual foam, layer-pad cartons, or custom trays for delicate or large parts; bore plugs or caps on request for precision bores.
• Custom packaging — customer-specified dunnage, kitting, and labelled bags per part number; crates and braces for large housings.
• Shipping options — air freight, sea freight (FCL / LCL), road, and courier; EXW, FOB, CIF, and DAP incoterms supported.
• Standard documents — packing list, commercial invoice, certificate of conformance (C of C), material test certificate to EN 10204 3.1.
• Inspection documents — first-article report (AS9102 / PPAP), full dimensional report with CMM data, bore-size and roundness log, surface-finish and hardness results.
• Traceability — heat- and lot-number linkage from raw stock through boring, heat-treat, finishing, and shipping; serialisation on request.

Manufacturing Considerations

A bore should be specified with its final diameter, tolerance, depth, datum relationship, coaxiality or positional requirement, entry chamfer, and surface finish. For a bearing or seal, identify the mating component and the intended fit class.

Quality and Inspection

Inspection may include diameter, roundness, cylindricity, bore depth, axis location, concentricity, perpendicularity to a face, and surface condition. The measurement method should match the tolerance and accessibility of the hole.

Surface Finish and Part Protection

Bore surfaces are usually protected during any subsequent cosmetic finishing process. If an external coating is needed, critical bores may need masking or a controlled post-finish operation.

Surface Finish Options

• As-bored internal finish, typical Ra 0.4–1.6 µm
• Fine-boring pass for Ra 0.2–0.8 µm and tighter size control on bearing / sealing bores
• Honing for hydraulic bores requiring Ra below 0.4 µm and roundness under 5 µm
• Bore burnishing for hardened bushings and food-grade stainless surfaces
• External finishes: as-machined, bead blast, anodize Type II / III, powder coat, paint
• Electroplating: zinc, zinc-nickel, nickel, tin, chrome (decorative and hard chrome)
• Passivation for stainless steels (ASTM A967 / A380), black oxide for carbon steels
• Polishing, lapping, and laser marking for cosmetic or traceability requirements

What is the difference between boring and drilling?

Drilling creates the initial hole. Boring enlarges and finishes an existing hole to a controlled final diameter, position, roundness, and surface finish. Use boring whenever the print calls for closer tolerance, better roundness, or a specific fit.

Common Defects & Prevention

Comparison With Related Processes
