What the Process Does

Deep hole drilling is used when a hole is long relative to its diameter and the usual challenges of chip evacuation, heat control, tool stability, and straightness become significant. The process is applicable to components that need long internal passages for cooling, fluid transfer, actuation, lubrication, or weight reduction.

Frequently Asked Questions

Can you deep-drill hardened parts?

Yes, up to about HRC 45–50 with the right tool geometry and coated drills. Above that, EDM or grinding of the bore is usually the cleaner route. Send the hardness specification with the drawing so we can recommend the right approach.

Process Flow

The machining sequence should be planned around the part's functional datums, feature access, material behavior, and the required inspection method. The detailed route is ultimately governed by the actual machine configuration, workholding, tool availability, and production quantity.

Design Intent

Provide the exact hole depth, diameter, end condition, entry and exit surfaces, any cross holes, and the required relationship to external datums. If a tube or passage will carry fluid, specify cleanliness and deburring expectations for the internal intersections.

Part Geometry and Materials

Material Selection

Deep holes may be drilled in aluminum, carbon steel, alloy steel, stainless steel, tool steel, brass, copper alloys, titanium, and other materials, subject to tool and coolant strategy. Material hardness and chip form directly affect the process plan.

Technical Planning and Quality

Before Production

A manufacturability review should confirm that the tolerance scheme is functional, the specified material is available, the workholding leaves access to critical faces, and the measurement plan can verify all requirements without ambiguity. Where an assembly interface is critical, provide the mating-part information or fit requirement.

Application Context

Fluid power, molds and tooling, industrial machinery, energy systems, aerospace, medical equipment, thermal management, and custom automation are common application areas.

When to Choose Another Process

Choose a deep-hole-specific strategy when the depth relative to diameter, straightness, chip evacuation, or internal cleanliness makes a standard drilling route unsuitable. A process review should confirm the feasible depth, tool type, and inspection plan.

Key Process Parameters

Materials We Machine

• Carbon and alloy steels — 1018, 1045, 4140, 4340, EN24, EN26, P20, P20+Ni
• Stainless steels — 304 / 304L, 316 / 316L, 321, 347, 17-4PH, 15-5PH, 2205 duplex
• Tool and high-speed steels — A2, D2, H13, S7, M2, M42, T1
• Aluminum alloys — 6061-T6, 7075-T6, 2024-T3, 6082, 5052
• Titanium — Grade 2, Grade 5 (Ti-6Al-4V), Grade 9 (Ti-3Al-2.5V)
• Nickel-based alloys — Inconel 625, Inconel 718, Monel 400, Hastelloy C-276
• Copper and brass — C110 copper, C360 brass, C932 bearing bronze
• Cast irons and hardened alloys — gray iron GG25, ductile iron 60-40-18, ADI grades up to HRC 45

Standard Tolerances & Achievable Precision

Standard gun-drilling holds ±0.025 mm on diameter. Tight-tolerance work is achieved by selecting a more stable tool geometry, controlling coolant pressure, and verifying alignment of the part and spindle before the cut begins.

• Diameter: ±0.025 mm standard, ±0.013 mm on precision bores
• Depth: ±0.5 mm on holes up to 500 mm; ±1.0 mm above 500 mm
• Straightness: 0.02–0.05 mm per 100 mm, depending on material and depth
• Position: ±0.05 mm relative to the part datum, or as specified by GD&T
• Surface finish: Ra 0.4–1.6 µm as-drilled; finer finishes by reaming or honing
• Default tolerancing per ISO 2768-m where the drawing does not call out otherwise

Quality Control & Inspection

Deep-hole features are inspected with methods chosen to match the part's tolerance and accessibility. For long or internal bores, special gauges and borescopes supplement standard hand tools.

• CMM measurement of external datums and entry / exit feature position
• Internal diameter gauges and air gauges for bore size and roundness
• Borescope visual inspection of internal wall condition, straightness indication, and intersections
• Surface roughness tester (profilometer) for internal wall finish where accessible
• Hardness tester for heat-treated or surface-hardened materials
• First-article inspection against the full drawing; in-process checks at drilling and finishing stages
• Final inspection report and material certification (EN 10204 3.1) on request

How is straightness controlled on a long hole?

By setting a precise pilot, controlling coolant pressure, and matching the cutting parameters to the material. For critical bores we measure straightness with a bore gauge or a borescope and document the result against the part datum.

What is the smallest diameter you can deep-drill?

Standard gun-drilling starts at ?1.5 mm. Below that, EDM hole-popping or micro-machining is usually more reliable. We review the part and recommend the right method for the diameter, depth, and material.

How to Get a Quote

Send the 3D model and 2D drawing with GD&T, the material grade and hardness condition, the order quantity, any required surface finish or cleanliness, and inspection requirements. For very deep holes, please flag intersecting features, fluid-path requirements, and entry / exit surface conditions up front.

You receive a written quote within one working day covering DFM feedback on hole geometry, the proposed drilling and inspection route, lead time, and unit price. Where there is a more cost-effective method — for example stepping a single very deep hole into two operations — it is called out before the quote is finalised.

Process Flow & Manufacturing Sequence

A deep-hole operation is planned around chip evacuation, coolant pressure, and tool guidance. The route below covers a typical gun-drilled or BTA-drilled hole from incoming stock to inspected bore. The actual sequence is tuned to the diameter, depth, and material.

1. Stock and datum preparation — the blank is rough-machined, faced, and centred; any pre-existing datum face is verified square to the spindle axis so the drill enters on a controlled surface.
2. Pilot bore (when required) — for very small diameters or hard entry surfaces, a short pilot hole is drilled to stabilise the gun drill and prevent wander at start.
3. Workholding and alignment — the part is clamped in a V-block, steady-rest, or dedicated fixture; the spindle axis is aligned to the required entry position and the runout is recorded.
4. Coolant system setup — high-pressure coolant is connected through the spindle or through the gun-drill body, the filter is checked, and pressure is set to the recommended range for the tool diameter.
5. Pecking and feed strategy selection — the cycle is set to retract for chip break (gun drilling) or to feed continuously (BTA); spindle speed and feed are matched to the tool manufacturer data sheet.
6. Pilot pass — a short, slow entry cut is made to seat the drill, confirm coolant flow, and check chip formation before the full-depth cycle starts.
7. — Main drilling cycle — the gun drill or BTA head feeds to the target depth with controlled pecking for chip evacuation; coolant pressure and flow are monitored throughout the cycle.
8. Exit and dwell — feed is reduced as the drill breaks through to control burr and exit straightness; the tool is retracted under coolant to clear chips from the bore.
9. Secondary operations — reaming, honing, or burnishing is performed when the print calls for closer size, better roundness, or a finer internal finish.
10. Cleaning and deburring — chips are flushed, the bore is blown out with clean coolant or air, and entry / exit edges are deburred to the print specification.
11. Inspection and documentation — bore size, straightness, surface finish, and (if required) cleanliness are measured and recorded against the print and any customer spec.

Material Property Reference

Cost Drivers & Lead Time Factors

Deep-hole cost and lead time are dominated by the depth-to-diameter ratio, the workpiece material and hardness, the straightness and finish requirements, and whether secondary finishing (reaming, honing) is part of the route. Tool life on gun drills and BTA heads is a key cycle-time driver; tight tolerance and tight straightness add setup, gauging, and trial-cut time.

Common Defects & Prevention

Comparison With Related Processes

Industry Standards & Certifications

• ISO 9001:2015 — quality management system for all production work
• AS9100D — aerospace QMS for flight-critical bores in actuators, trunnions, and manifolds
• ISO 13485:2016 — medical device QMS for cannulated instruments and implant-related components
• IATF 16949 — automotive QMS for serial-production driveline and engine bores
• NADCAP AC7110/12 — special process accreditation for deep-hole drilling when required by aerospace primes
• ISO 4406 / NAS 1638 — fluid cleanliness codes for hydraulic and fuel-passage bores
• RoHS, REACH, and DFARS compliance on material sourcing
• ITAR registration for defence-related deep-hole work
• ASME Y14.5 and ISO 5459 for GD&T on bore position, straightness, and cylindricity

Packaging, Shipping & Documentation

Deep-hole parts are packed to protect bores from contamination, moisture, and impact. Bores are typically oiled or wrapped in VCI, then blocked or plugged if the print requires it. Long parts are supported along their length to prevent shipping distortion.

• Standard packaging — VCI paper or oil wrap on bores, foam end caps, individual wrapping, layer-pad cartons; long parts crated in V-block supports.
• Bore protection — plastic bore plugs, paper wraps, or taped caps on request to keep bores clean for hydraulic or pneumatic service.
• Shipping options — air freight, sea freight (FCL / LCL), road, and courier; EXW, FOB, CIF, and DAP incoterms supported.
• Standard documents — packing list, commercial invoice, certificate of conformance (C of C), material test certificate to EN 10204 3.1.
• Inspection documents — first-article report (AS9102 / PPAP), bore measurement report with diameter, straightness, and roundness data, surface-finish and cleanliness results, and borescope images when required.
• Traceability — lot and heat-number linkage from raw stock through drilling, heat-treat, finishing, and shipment; serialisation on request.

Related Capabilities & Cross-Services

Deep-hole work is normally part of a wider part process. The following capabilities are commonly combined with deep-hole drilling to deliver a finished, inspected component.

• Turning and CNC lathe work — pre-machining of the OD, flange, register, and seal faces before the deep bore is drilled.
• Milling (3-axis, 4-axis, 5-axis) — features on the part envelope that are not on the turning axis, and slots for fluid intersections.
• Boring and fine-boring — close-tolerance finishing of the bore after drilling for H-class fits and bearing seats.
• Reaming, honing, and burnishing — internal finishing to Ra below 0.4 µm, controlled roundness, and surface hardness.
• Thread milling and tapping — internal threads at the bore mouth, mounting threads, and cross-port threads.
• EDM (wire and sinker) — for very small holes, intersecting features in hardened material, and sharp internal corners.
• Heat treatment — through-hardening, case-hardening, induction hardening, and stress relief through approved partners.
• Surface finishing — passivation, nitriding, chrome plating, and internal coating for wear or corrosion resistance.
• Cleanliness verification — fluid flushing, ultrasonic cleaning, and lab cleanliness testing to ISO 4406 or NAS 1638.
• Assembly and pressure testing — sub-assembly of fittings, plugs, and ports, and hydrostatic / pneumatic pressure testing when the print requires it.

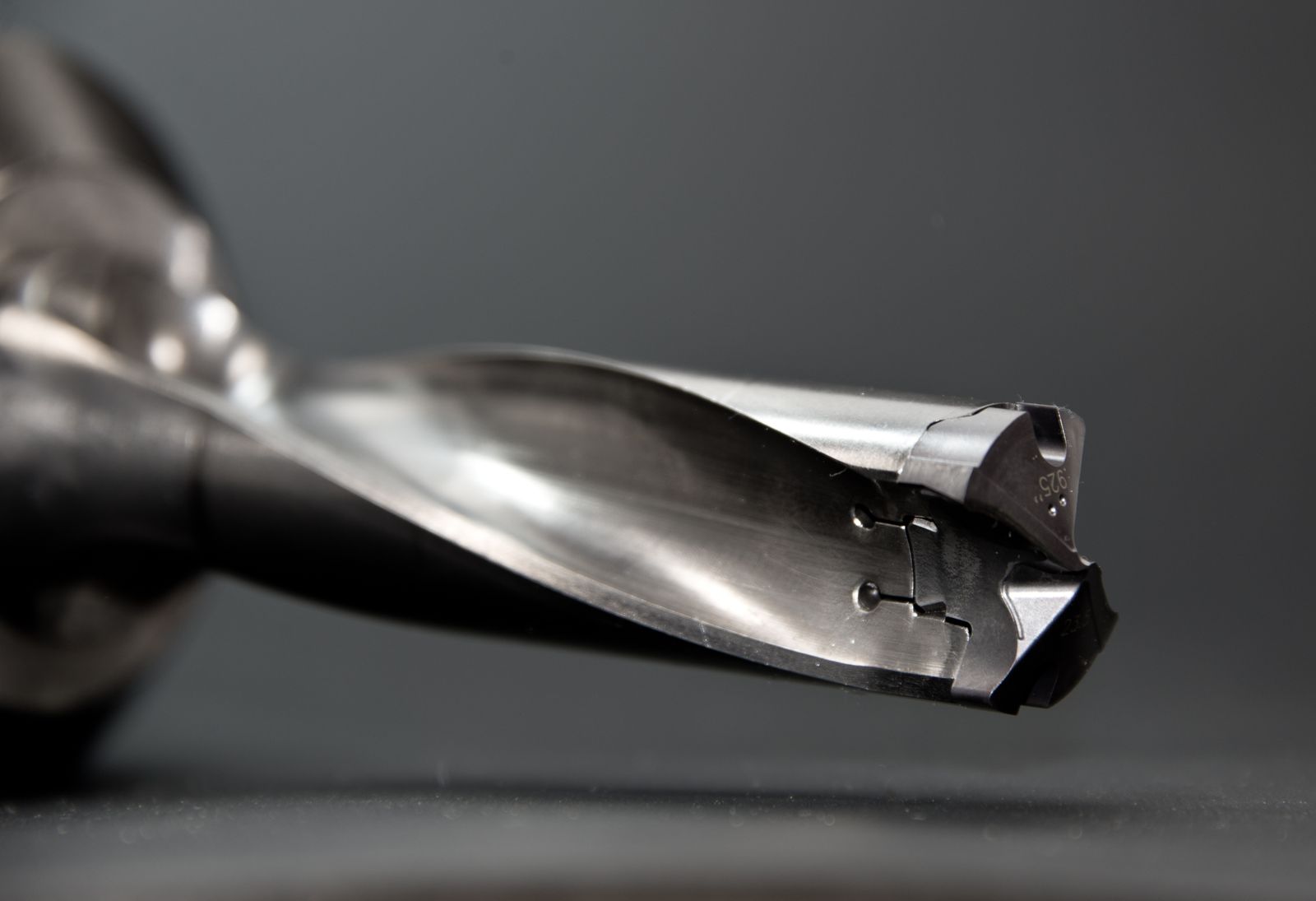

Features and Typical Components

Important design attributes include the hole depth-to-diameter relationship, through or blind condition, intersecting passages, entrance geometry, exit breakthrough, internal finish, positional tolerance, and straightness requirement.

Typical components ?Typical examples include mold cooling passages, hydraulic components, actuator bodies, long fluid manifolds, aerospace structures, machine parts, heat-transfer blocks, and specialized fixtures.

Manufacturing Considerations

Provide the exact hole depth, diameter, end condition, entry and exit surfaces, any cross holes, and the required relationship to external datums. If a tube or passage will carry fluid, specify cleanliness and deburring expectations for the internal intersections.

Quality and Inspection

Inspection can include depth, diameter, location, straightness, surface condition, bore cleanliness, and verification of intersecting-hole breakthrough. The measurement method should be chosen early for features that are inaccessible to standard gauges.

Surface Finish and Part Protection

The primary concern is usually the condition of the hole itself, including burr removal at the entry, exit, and cross-hole intersections. External finishing may be applied after machining as long as critical passages are protected.

Surface Finish Options

• As-drilled (gun / BTA) — typical Ra 0.4–1.6 µm internal wall
• Reaming or burnishing for closer tolerance and finer internal finish (Ra 0.2–0.8 µm)
• Honing for hydraulic or pneumatic bores requiring Ra below 0.4 µm and roundness under 5 µm
• Deburring and edge-breaking at entry and exit to control burrs on intersecting passages
• Bore cleaning and flushing to meet cleanliness specifications for fluid-power components
• External finishes: bead blast, anodize Type II / III, passivation, black oxide, powder coat, paint
• Electroplating options: zinc, zinc-nickel, nickel, chrome — applied after drilling where drawing requires
• Laser marking and engraving on external surfaces for part numbers and traceability

Design Considerations (DFM Tips)

• Define the depth-to-diameter ratio up front; ratios above 30:1 typically require gun-drilling or BTA and a guided start.
• Provide a flat, perpendicular entry surface — or specify a pre-drilled pilot — so the gun drill can start without wandering.
• For intersecting holes, indicate whether the secondary hole must be free of burrs and the tolerance on the intersection point.
• Avoid specifying the maximum possible depth in a single part if a stepped or cross-drilled alternative reduces risk and cost.
• Allow generous radii at the bottom of blind holes (— 0.5 — ?) so the drill geometry can complete the cut cleanly.
• If the bore carries fluid, state cleanliness and surface-finish expectations — they drive the choice of drill, coolant, and any post-process.
• Hardened or difficult-to-machine alloys (Inconel, titanium, hardened tool steel) are best reviewed for feasibility before tooling is committed.
• Thin walls adjacent to a deep bore deflect during drilling; flag thin sections in the print so the process plan can support them.
• For very long holes, indicate the maximum acceptable entry / exit straightness deviation against the part datum.

What about cleanliness for hydraulic and fuel passages?

We finish with controlled flushing, ultrasonic cleaning where required, and borescope inspection. If a cleanliness spec (for example ISO 4406 or NAS 1638) applies, state it on the drawing so it is built into the inspection plan.

Advantages and Applications

Industries & Applications

• Aerospace — landing gear pins, hydraulic manifolds, actuator bodies, landing-gear trunnions
• Oil & gas — downhole tool barrels, drilling collars, valve bodies, flow-meter bodies
• Automotive and motorsport — crankshafts, drive shafts, gear blanks, injector bodies
• Hydraulics and pneumatics — hydraulic cylinder blocks, valve spools, pump housings
• Medical devices — surgical instrument shafts, bone-drill guides, cannulated instruments
• Energy — heat-exchanger tubesheets, nuclear component bodies, generator rotor cooling passages
• Mould and die — ejector pin holes, leader pin bores, cooling channels in die blocks

What is the practical limit for hole depth?

Gun-drilling routinely reaches depth-to-diameter ratios of 100:1 in diameters below ?20 mm. Beyond a metre, the part geometry, fixturing, and inspection method all start to dominate the process and the part is reviewed case by case.

Why Select This Process

Deep-hole drilling provides a controlled approach to long internal passages that may be inefficient or unstable with general-purpose drilling alone. It supports designs that integrate cooling, flow, lubrication, or actuation into a compact component.

Do you handle intersecting and cross-drilled passages?

Yes. We plan tool entry / exit, chip evacuation, and any deburring or radius requirement at the intersection. If a fluid path is involved, cleanliness and deburr expectations are flagged at the quote stage.
